Lab 6

Network Address Translation

References

  1. WinDump Manual
  2. hping3 Manual
  3. packet-filtering-HOWTO.html

References

hping manual

Introduction

This Exercise is an introduction to Network Address Translation (NAT). NAT is often used to make all traffic from a protected, private network appear to be originating from a single IP address. This can be done to allow many machines to have access to the Internet when only a small Internet address space is available for use (i.e. conservation of IP addresses). It can also be used to "hide" the machines on the protected, private network. That  is, because the machines on the private network do not have externally visible IP addresses they can not be directly contacted by machines outside the private network. The machines on the inside must initiate communication.

NAT can also be used at the packet filter to direct all traffic addressed to a particular IP address/port number, to a specific machine on the internal network. You can also direct all traffic addressed to a specific IP address in the external IP address space to a different IP address in the address space of the protected, private network.

How does NAT fit in with iptables packet filtering

Recall that you looked at the FORWARD, INPUT and OUTPUT chains in the iptables/netfilter firewall. These chains were part of a 'table' called the 'filter' table. You did not specify this table when writing iptables rules because the filter table is the default table. There is another table defined for the iptables/netfilter firewall called the 'nat' table. The nat table has two chains that we will be looking at in this exercise: the PREROUTING chain and the POSTROUTING chain. Packets are processed by these chains in the decision diamonds in Figure 1 before the packets proceed for processing on the 'filter' table FORWARD, INPUT or OUTPUT chains.

Fig 1

Figure 1 - Configuration of chain processing

Recall that the main targets we used when a chain rule was matched in the 'filter' table chains was DROP or ACCEPT. The main targets used on the 'nat' table chains will be MASQUERADE, SNAT and DNAT. The target MASQUERADE is usually used on the POSTROUTING chain and causes the source IP address of the packet to be substituted for another address (by default the address of the firewall). Masquerading also keeps track of these substitutions so that packets returning from the Internet have the correct reply address substituted back so the packets can reach their correct destination on the internal network. The SNAT and DNAT targets are used to specify specific source and destination address translations respectively.

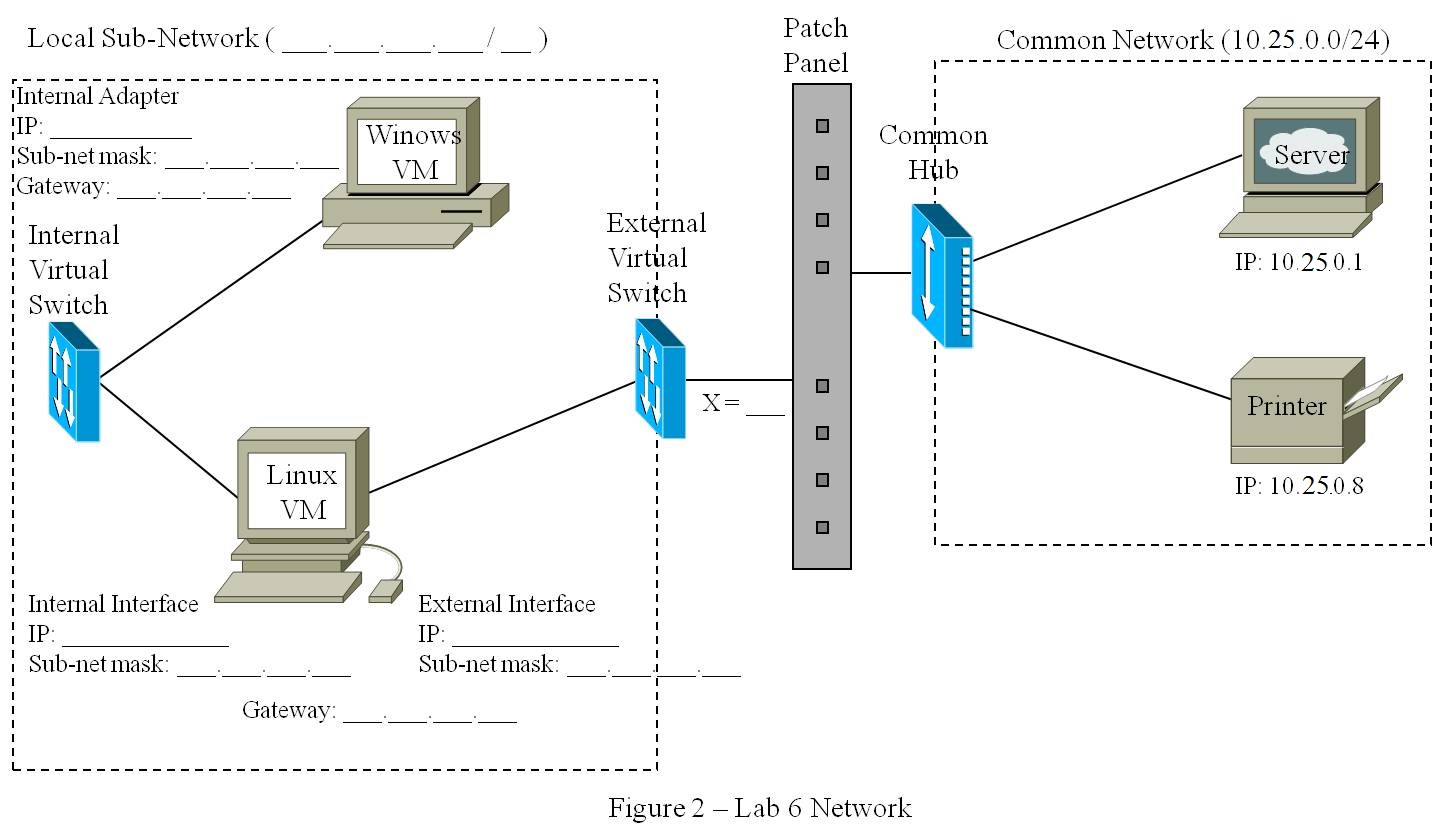

Exercise Setup

Set up your lab environment according to the specifications below, and annotate Figure 1 accordingly. Note that it is the same setup as used in Lab 6.
Fig 2


Ensure that you have IP forwarding turned on to enable the Linux VM to act as a router.
From Lab 6 you had a iptables_rules.sh file with the following rules:

#! /bin/sh
alias iptables='sudo iptables'
iptables --flush
iptables --policy INPUT DROP
iptables --policy FORWARD DROP
iptables --policy OUTPUT DROP

iptables -A OUTPUT -p icmp --icmp-type echo-request -j ACCEPT
iptables -A INPUT -p icmp --icmp-type echo-reply -j ACCEPT

iptables -A FORWARD -s 10.0.x.0/24 -p icmp --icmp-type echo-request -j ACCEPT
iptables -A FORWARD -d 10.0.x.0/24 -p icmp --icmp-type echo-reply -j ACCEPT

iptables -A FORWARD -s 10.0.x.0/24 -p tcp --dport 23 -m state --state NEW,ESTABLISHED -j ACCEPT
iptables -A FORWARD -d 10.0.x.0/24 -p tcp --sport 23 -m state --state ESTABLISHED -j ACCEPT

Verify the current rules:
Recall from Lab 6 the shell script you wrote to implement your iptables rules. If you still have this file then use it now. Otherwise, recreate iptables_rules.sh from Lab 6; remember to make the file an executable using chmod 755.  Then run the shell script:
Also recall that the laboratory instructor will need to add a route to the main lab router that tells it that your router/firewall is the gateway for your new LAN.

NAT Masquerade

You will configure your firewall to hide the internal network behind the firewall external interface (10.25.0.y).

Before you do this run tcpdump on both the Internal and External interfaces of the Linux VM:
Now, run telnet from the Windows VM to the Server.  Examine the source and destination addresses in the telnet traffic on either side of the firewall.

Return to your original terminal, where you are administering the firewall. View the current nat rules; there should be none.
Now, add a masquerading rule to your iptables_rules.sh file.

        iptables -t nat --flush
        iptables -A POSTROUTING -t nat -o external_interface -s 10.0.x.0/24 -d 0/0 -j MASQUERADE Refresh the rules:
Be sure you understand what each part of this rule does. This command adds a rule to the POSTROUTING chain of the nat table, which matches packets leaving/output on the external interface that originate from subnet 10.0.x.0/24 and are destined for any network. The target of the rule (i.e. the action to take for packets matching this rule) is to Masquerade, i.e. substitute the source IP address for the firewall address and record this substitution in a table so the reverse substitution can be performed on returning packets.

Again, run telnet from the Windows VM to the Server.  Examine the source and destination addresses in the telnet traffic on either side of the firewall. What has changed?







Challenge for the adventurous

The NAT masquerading you just looked at dealt with address translation for traffic initiated from within your internal private network. What about traffic originating on the outside; how does it find important servers like ns, mail or www that are on a DMZ inside your firewall if it is using NAT masquerading?

Examine the sections of the Quick_HOWTO: Linux_Firewalls_Using_iptables guide titled:
Write the rules that would allow external machines to find your ns, mail or www server inside your NAT masquerading
Submit your lab report by e-mail. Place files together in a  zip file before sending. Include your report and network traffic dump files. Don't forget how important the discussion section of the lab is.
